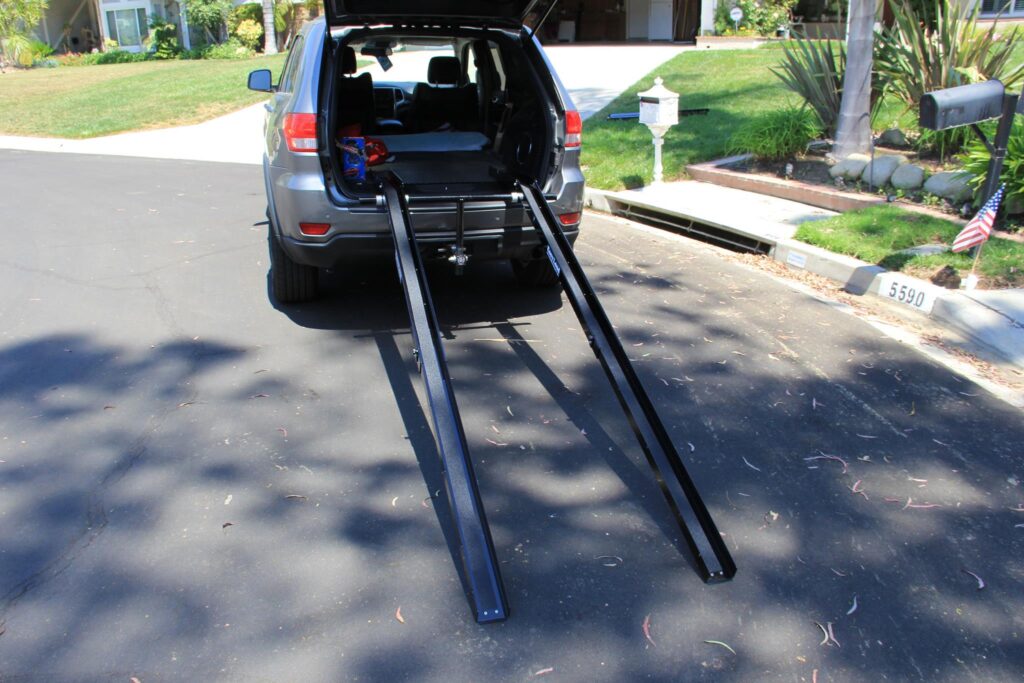

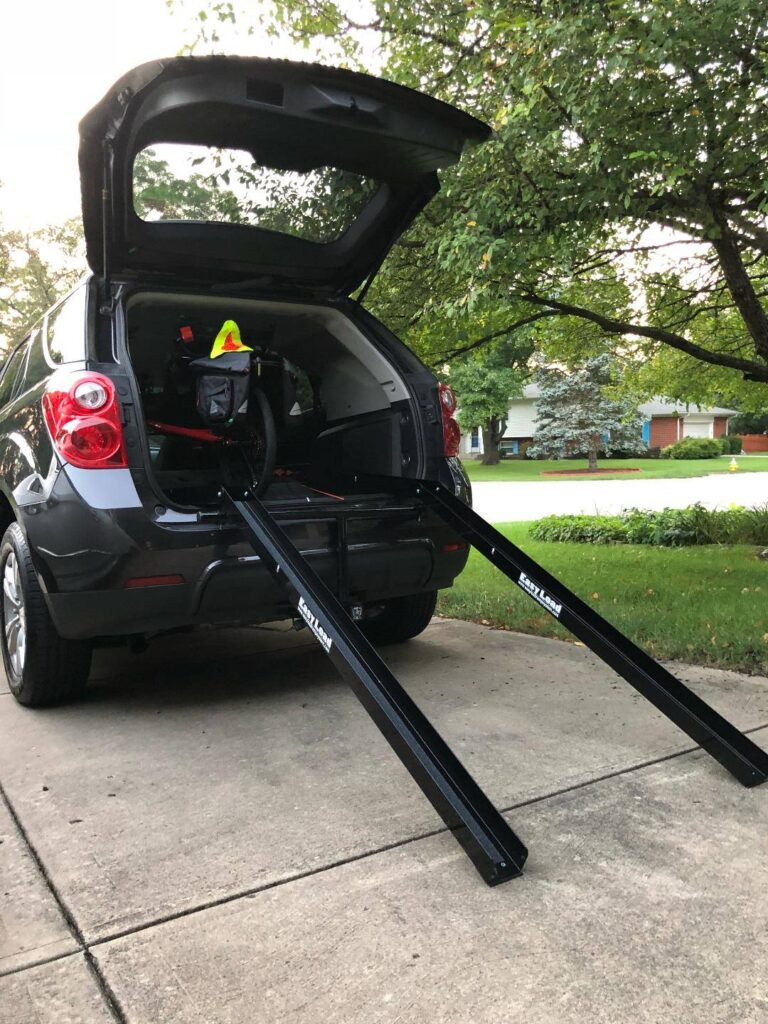

The Easy Load Ramp System-Extra Long is designed to load a recumbent trike or hand cycle into a van, SUV or pickup truck. The ELRS-XL makes use of the trike transporting vehicles 2” receiver hitch. A 1.25” receiver hitch may be used with a converter to 2”.

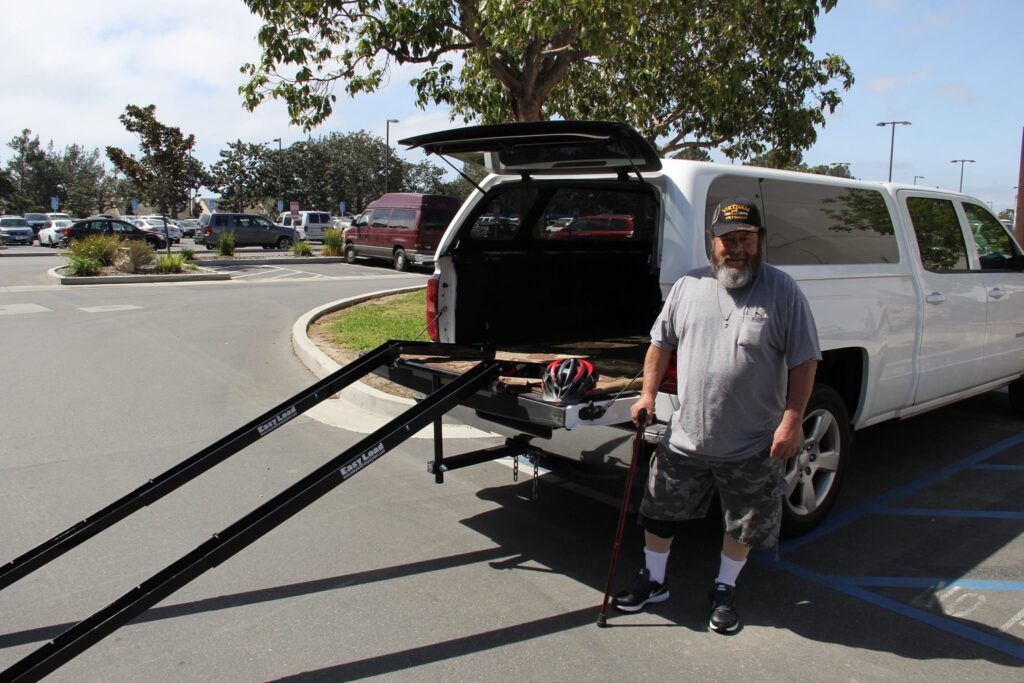

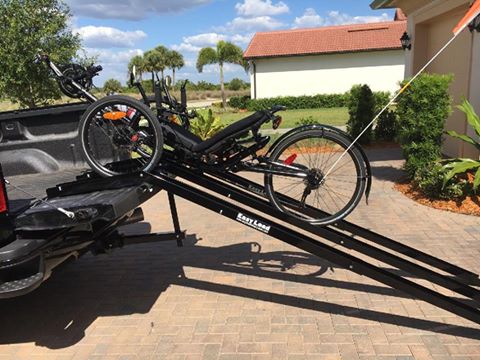

The ramps telescope from a stowed length of 4’ 6” to a maximum length of 8’. There are also stops and 5’, 6’, and 7’. The 8’ ramps greatly reduce the “push effort” up the ramps. Each ramp has a 2’ folding ramp extension to bridge the gap between the Ramp Support “T” bar and the floor of the SUV or van. If the ELRS-XL is being used to load a trike or hand cycle into a pick-up truck the Receiver Hitch Insert and “T” Bar are longer and taller to accommodate the lowered tailgate. Both the RHI and “T” should be removed from the pick-up’s receiver hitch after loading.
Some larger/taller SUV’s may also require the taller “T”.
For information and to order your ELRS-XL
please Contact EASY LOAD!
